Aveo Interior LED Light Upgrade
by Subachad on May.08, 2011, under Automotive, Electrical, Installs, Interior
I have had LED Footwell lights in the Aveo for a while, but they were a little too green and the light was a little too focused. I prefer more of a glow and while I wasn’t able to find teal, I could find some lights that are capable of teal. As an added benefit, they are also able to pulse to the beat.
The install was pretty straight forward, I simply unplugged the power for the old lights and hooked up the new using the same relay. Since they are attached to the controller, it’s a little more difficult to run the wires.
Without further ado, here are a couple videos followed by some images.

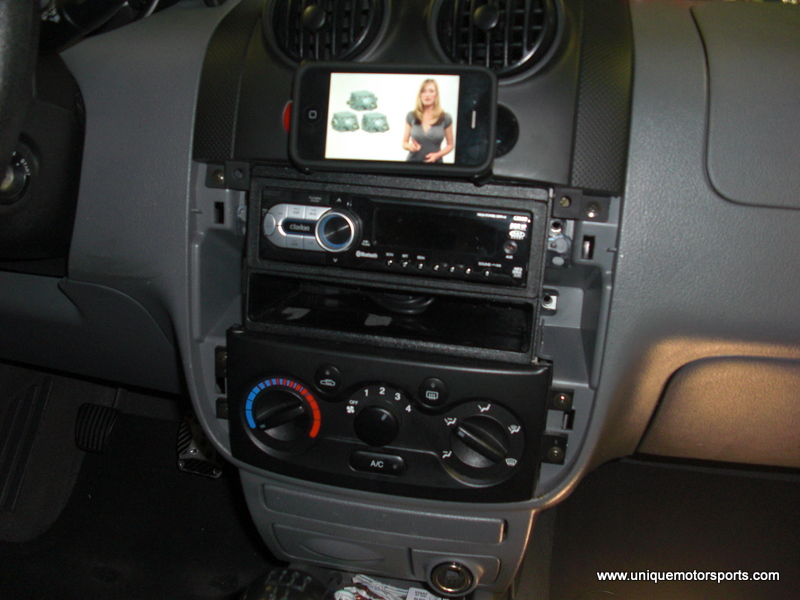

Getting Started
Removing the Stereo
Stereo Removed
Sliding the light below the seat rail

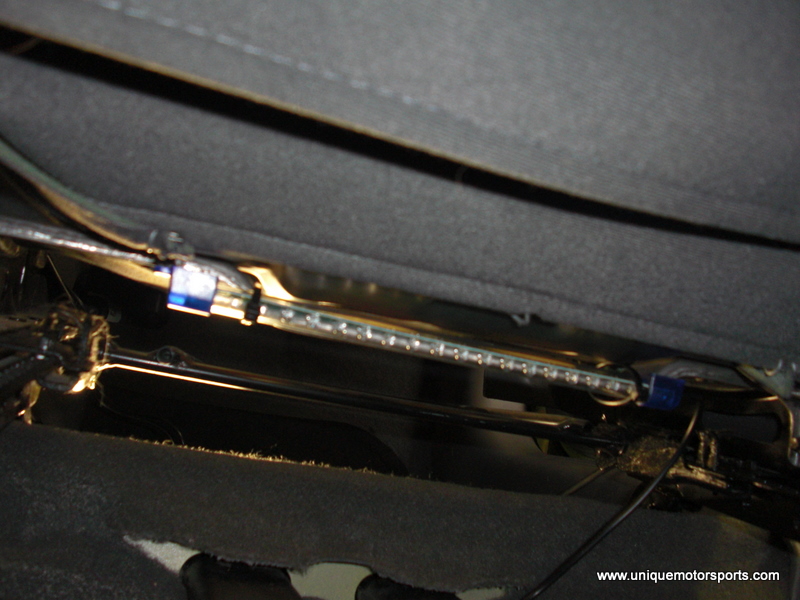

LED mounted under seat with zip ties

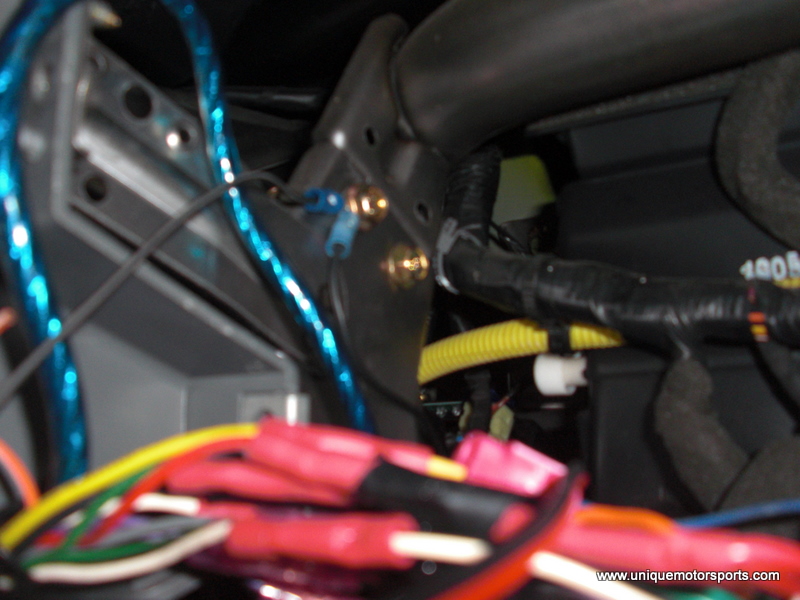

Ground point just behind the stereo
LED mounted below the dash on the passenger side
Controller box and wires tucked into a lower cubby hole

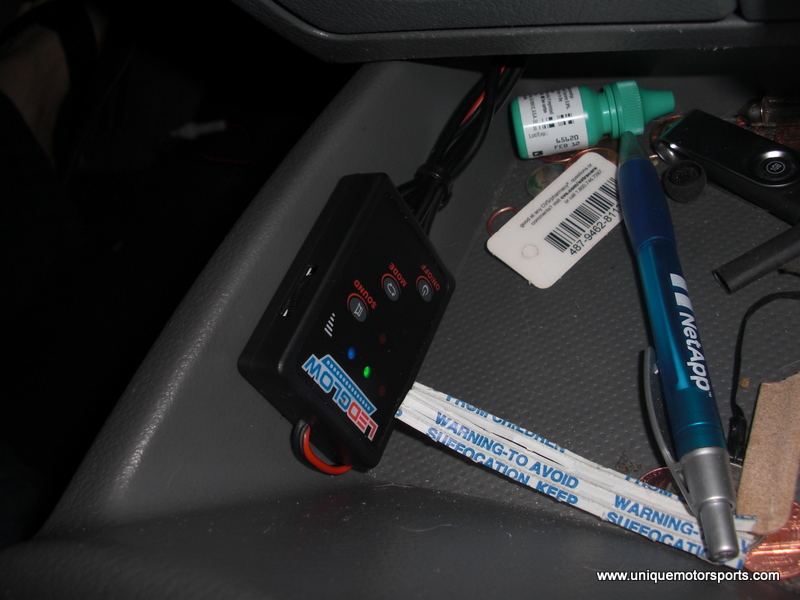

Controller box, sticky taped to the cubby allowing easy access to the controls
All in!

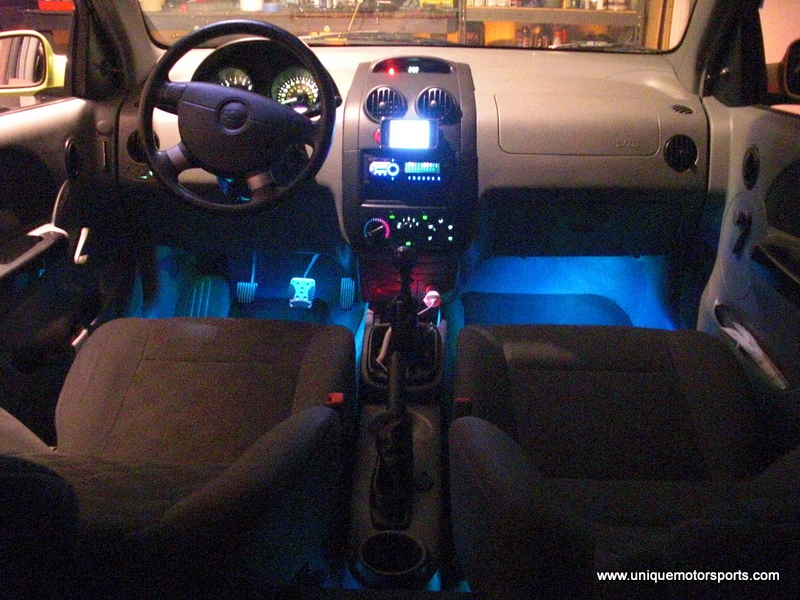

Garage light off to better show the glow of the LED’s
LED’s are a full RGB spectrum allowing other colors such as red, blue, green, etc..
Rear seating foot area
Great view showing the Skittle approved teal
